Coverage Navigation package

Coverage navigation package for the LabClean application. Provides the action server that executes coverage plans, a set of pluggable path planners, and shared utilities for map processing and ROS path conversion.

---

Run

ros2 run mirte_lc_nav2 labclean_navigator

---

Nodes

labclean_action_server

Accepts NavigateCoverage goals, delegates path planning to the requested planner, and drives the robot through coverage segments using Nav2’s goThroughPoses. Supports pause, resume, and stop at runtime via a service interface.

Action servers

Action	Type	Description
/labclean_navigator/coverage	mirte_lc_msgs/NavigateCoverage	Execute a full coverage plan

Services

Service	Type	Description
/labclean_navigator/set_state	mirte_lc_msgs/ServeCoverageStatus	Pause, resume, or stop ongoing coverage

Subscribed topics

Topic	Type	Description
/global_costmap/costmap	nav_msgs/OccupancyGrid	Live costmap used for coverage planning

---

Coverage execution flow

Receive NavigateCoverage goal
│
├── Look up robot position via TF (map → base_link)
├── Instantiate requested planner
├── planner.plan(costmap, start)
│     ├── update_map()     — threshold, contour extraction, world↔pixel conversion
│     ├── generate_path()  — planner-specific algorithm
│     └── sanitize_paths() — clamp waypoints to costmap bounds
│
├── Sort segments longest-first
│
└── For each segment:
      ├── goThroughPoses(segment)
      ├── Poll feedback loop
      │     ├── cancel requested  → canceled()
      │     ├── stop requested    → abort()
      │     ├── pause requested   → cancelTask()
      │     │     ├── save_path() — reinsert remaining segment at queue front
      │     │     └── spin until resume → goThroughPoses(remaining)
      │     └── isTaskComplete()  → advance to next segment
      └── publish_feedback (completion %, current/total segments)

Pause / resume behaviour

On pause the server calls cancelTask() immediately, then calls save_path() to compute the remaining portion of the current segment before re-queuing it. On resume, goThroughPoses is re-issued on that saved segment. The remaining_poses field in the service response reflects the last feedback value from Nav2 at the time of the pause.

save_path() finds the resume index by computing the closest waypoint to the current robot pose (TF lookup). If that lookup fails it falls back to using remaining_poses to slice the tail of the segment.

---

Planners

All planners inherit from SystematicNavigator and implement generate_path(start). The PLANNERS registry maps name strings to classes.

from mirte_lc_nav2.navigators import PLANNERS
# PLANNERS = {
#   "SkeletonPlanner":     SkeletonPath,
#   "SpanningTreePlanner": SpanningTreePath,
#   "StraightLinePlanner": StraightLinePath,
#   "CVTPlanner":          CVTPath,
# }

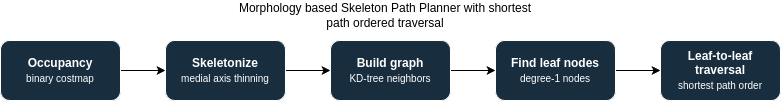

SkeletonPlanner (default)

Computes the medial axis skeleton of the free space, converts it to a graph, and traverses between leaf nodes using shortest graph paths.

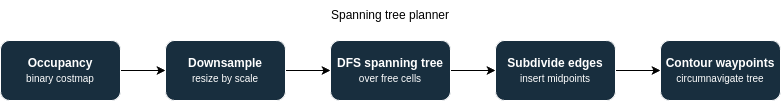

SpanningTreePlanner

Downsamples the costmap, builds a DFS spanning tree over free cells, and circumnavigates contours around the tree.

CVTPlanner

Samples coverage waypoints using Centroidal Voronoi Tessellation (Lloyd’s algorithm), then solves a nearest-neighbour TSP over the centroids.

Parameter	Default	Description
n_seeds	30	Number of Voronoi cells
n_iterations	20	Lloyd iterations

StraightLinePath

Generates a single diagonal straight-line trajectory from the start pose. Useful for testing and calibration only.

---

SystematicNavigator — shared base class

All planners share this base. Key shared methods:

Method	Description
plan(map_msg, start)	Entry point: calls update_map → generate_path → sanitize_paths
update_map(map_msg)	Thresholds occupancy grid, extracts and groups polygon contours, stores self.polymap
sanitize_paths()	Clamps all waypoints to valid costmap bounds; removes duplicate points introduced by clamping
set_waypoints(waypoints)	Builds a KDTree-connected nx.Graph; bridges disconnected components
find_leaf_nodes(graph)	Returns nodes with degree 1
find_nearest_node(graph, pos, nodes)	Nearest node by Euclidean distance
world_to_pixel_poly(polygon)	Map-frame coordinates → costmap pixel indices
pixel_to_world_poly(polygon)	Costmap pixel indices → map-frame coordinates

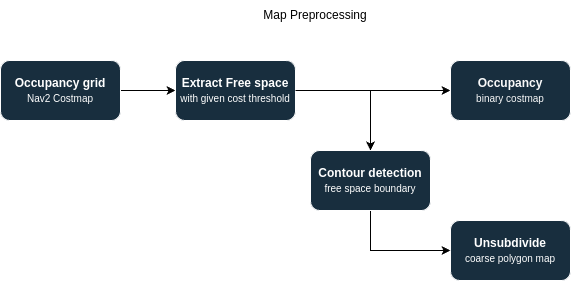

All planners also follow this pattern for retrieving a map

Published topics (when a node is provided)

Topic	Type	Description
/systematic_navigator/map_contours	geometry_msgs/PolygonStamped	Extracted map boundary contours
/systematic_navigator/decomposed_map	visualization_msgs/MarkerArray	Decomposition cells (if applicable)
/systematic_navigator/planned_path	visualization_msgs/MarkerArray	Planned waypoint path

---

Utilities

to_ros_path(points, frame_id, spacing)

Converts a list of (x, y) points into a nav_msgs/Path by removing duplicates (< 1 mm apart) and uniformly resampling to the requested spacing.

from mirte_lc_nav2.utils import to_ros_path
path = to_ros_path(segment, frame_id="map", spacing=0.1)

Argument	Default	Description
points	—	Sequence of (x, y) tuples
frame_id	"map"	TF frame for output poses
spacing	0.1 m	Target distance between output poses

log(node, msg_type, msg)

Thin wrapper around the ROS logger. Falls back to print() when node is None (e.g. running planners in Jupyter).

from mirte_lc_nav2.utils import log, LogType
log(node, LogType.INFO, "planning complete")
log(None, LogType.WARN, "running without ROS node")

LogType	ROS level
INFO	get_logger().info
WARN	get_logger().warn
ERR	get_logger().error
DEBUG	get_logger().debug

---

Dependencies

• rclpy, tf2_ros

• nav2_simple_commander (BasicNavigator, PyCostmap2D)

• mirte_lc_msgs

• nav_msgs, geometry_msgs, visualization_msgs, std_msgs

• numpy, opencv-python (cv2)

• networkx

• scikit-image (skimage.morphology)

• scipy (KDTree, Voronoi)
